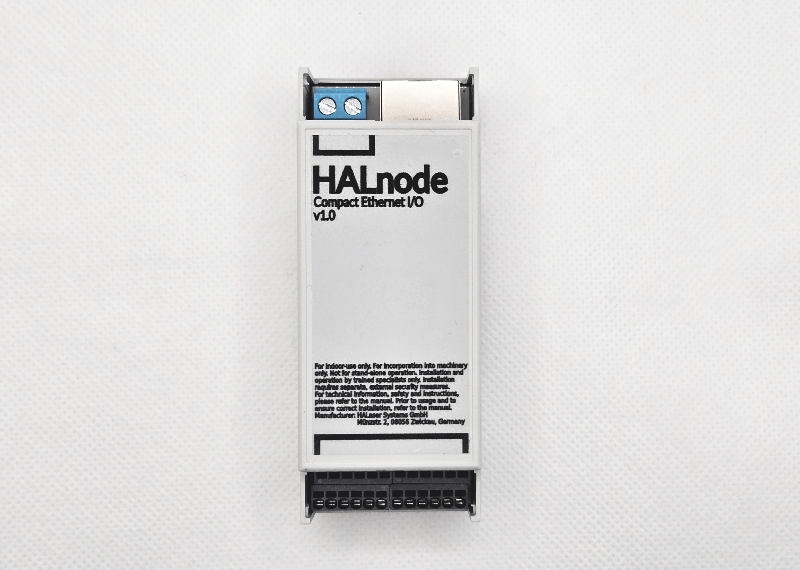

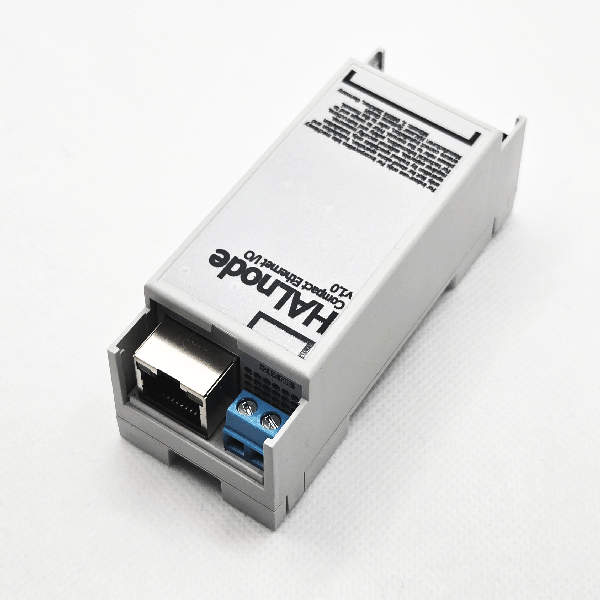

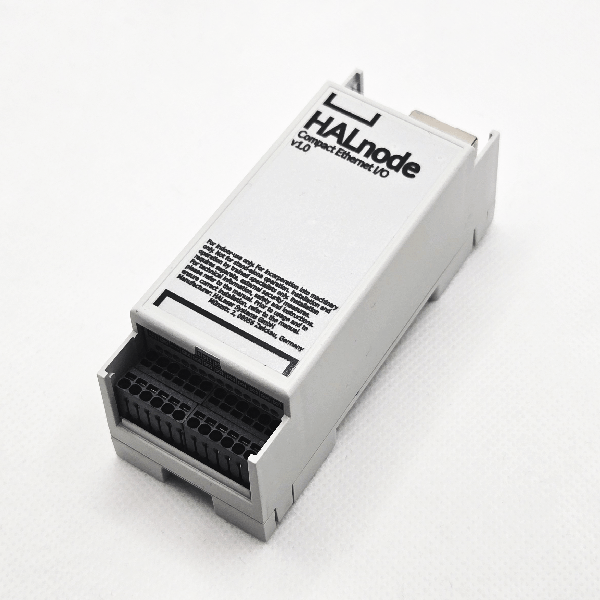

The HALnode Compact Ethernet IO module can be integrated into every machine network and provides the following features:
- wide-range power supply allows input voltages from 9V to 32V
- 8 galvanically insulated digital inputs which can be operated with external power in range 5..24V
- 8 galvanically insulated digital outputs which can be operated with external power in range 5..24V
- 2 of the digital outputs optionally can issue freely definable frequencies of up to 500 kHz with programmable pulse-width (PWM)
- 2 analogue inputs in range 0..10V with a resolution of 16 bits
- Ethernet interface to connect with host (control-PC / embedded device / PLC)
- control via Telnet ASCII commands, MODBUS, MQTT or HTTP REST API, other protocols available on request
- fully operational with any control device such as a PLC
- optionally: up to two HALnodes can be used as IO-expansion for HALaser Systems E170X and E180X scanner controller cards
- compact housing with DIN rail mounting clamp
Resources
HALnode English manual containing the full hardware description
as well as programming interface specifications: halnode_manual.pdf
