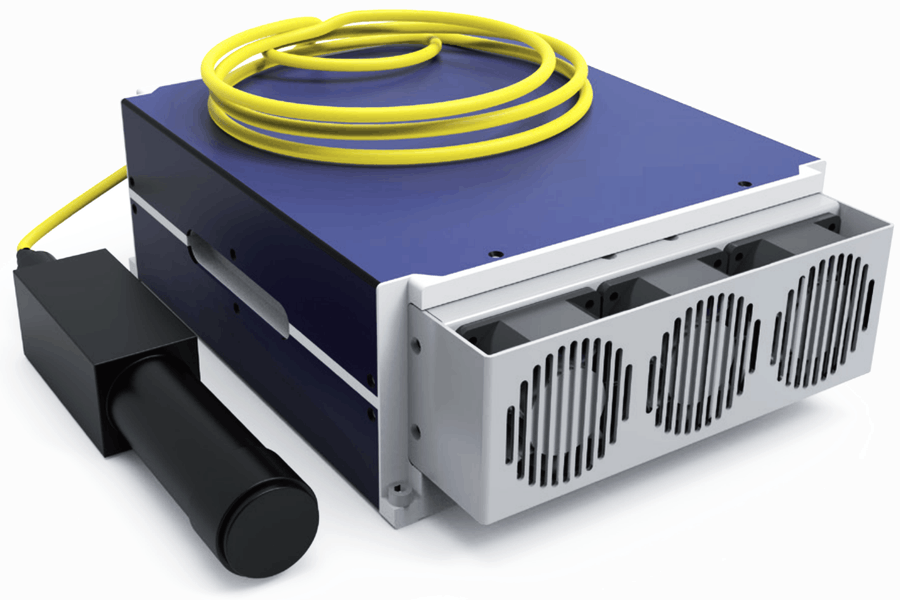

Laser Sources

All our controller cards are designed in a way to work with all types of lasers that are available, no matter what kind of hardware interface they provide and what control signals they need. So when using any of our controllers, you are free to choose your desired type of laser source.

Nevertheless for a quick and easy integration, together with a highly qualified partner, we offer a set of ready-to-use lasers which can be connected to our controllers simple and easy and which are verified to work in the hardware combination shown below without the need to have additional circuitry or wiring.

The following tables give a quick overview about these laser sources, their technical data and the possibilities to connect them with our controller cards. Additionally it is described what configurations are required in BeamConstruct and what connections need to be established in order to have a quick and easy start with these laser types.

All these lasers ship from Germany and all possible maintenance can be done by our service partner here in Germany too.


MOPA Fiber Lasers 20..250 W | Pulsed Fiber Lasers 20..100 W | Pulsed/CW Fiber Lasers 75..4500 W | CO2 Lasers 17..55 W

The PMX series MOPA lasers provide a wide frequency range, optimised optical quality and can be operated with both, E1701D and E1803D controller card. In BeamConstruct they need to be configured as "MOPA (MO, LP8, Latch)" and with PWM-control-mode "PWM value via LaserB, LP8_1, LP8_2" to set a custom pulse-width.

Model RFL-P20MX RFL-P30MX RFL-P60MX RFL-P70MX RFL-P100MX RFL-P200MX RFL-P250MX
Output Power 20 W 30 W 60 W 70 W 100 W 200 W 250 W
Wavelength 1064 nm
Frequency range 1..2000 kHz 1..4000 kHz
Output power variances <3 % <5 %
Output beam diameter 7±1 mm 6±1 mm 7±1 mm
Beam quality M2<1,3 M2<1,6 M2<1,8
Polarisation random
Pulsewidth 2..500 nsec 10..350 nsec
Single pulse energy 0,7 mJ 1 mJ 1,5 mJ
Output power range 1..100 %
Laser cable length 3 m (optionally also available: 2 m, 4 m or 5 m)
Required power supply 24 V, 150 W 24 V, 200 W 24 V, 450 W 24 V, 450 W 24 V, 500 W 48 V, 800 W 48 V, 1 kW
Cooling Air
Dimensions 286x215x95 mm 360x390x123 mm 395x460x130 mm 460x395x131 mm
Possible scanhead HALscan 10.20 1064 nm HALscan 10.20 1064 nm
(with high power mirrors)
HALscan 16.20 1064 nm
Mounting to scanhead e.g. via compact and easy to use HKL-17-03-LK-00x plate/bracket collimator set
Connection with E1701D
Connection with E1803D


The PQB series pulsed fiber lasers come with a very compact design and a competitive price. They can be operated with both, E1701D and E1803D controller card. In BeamConstruct they can be configured as "MOPA (MO, LP8, Latch)".

Model RFL-P20QB RFL-P30QB RFL-P50QB RFL-P100Q
Output Power 20 W 30 W 50 W 100 W
Wavelength 1064 nm
Frequency range 20..60 kHz 30..60 kHz 50..100 kHz 20..200 kHz
Output power variances <3 %
Output beam diameter 7±1 mm 6,5±1 mm
Beam quality M2<1,5 M2<1,8
Polarisation random
Pulsewidth 90..110 nsec (at 20 kHz) 120..150 nsec (at 30 kHz) 120..150 nsec (at 50 kHz) 50..110 nsec (at 20 kHz)
Single pulse energy 1 mJ (at 20 kHz) 1 mJ (at 30 kHz) 1 mJ (at 50 kHz) 1 mJ (at 100 kHz)
Output power range 10..100 %
Laser cable length 3 m (optionally also available: 2 m, 4 m or 5 m)
Required power supply 24 V, 170 W 24 V, 240 W 24 V, 340 W 24 V, 500 W
Cooling Air
Dimensions 290x215x95 mm 390x360x123 mm
Possible scanhead HALscan 10.20 1064 nm HALscan 16.20 1064 nm
Mounting to scanhead e.g. via compact and easy to use HKL-17-03-LK-00x plate/bracket collimator set
Connection with E1701D
Connection with E1803D


The QCW series pulsed/CW fiber lasers provide high pulse energy and come with a competitive price. They can be operated with the E1803D controller card. In BeamConstruct they can be configured as "MOPA (MO, AOut0)".

Model RFL-QCW75 RFL-QCW150 RFL-QCW300 RFL-QCW450
Output Power (average, CW) 120 W 250 W 300 W 450 W
Output Power (average, pulse) 75 W 150 W 300 W 450 W
Output Power (maximum) 750 W 1500 W 3000 W 4500 W
Wavelength 1080±5 nm
Frequency range 0..5 kHz
Output power variances <3 %
Output fiber core 12, 25, 50 um 25, 50, 100, 200 um 50, 100, 200 um
Pulsewidth 0,05..50 msec
Output power range 10..100 %
Laser cable length 5 or 10 m
Required power supply 230 V, single phase 400 V, three phases
Cooling Air
Dimensions 280x440x148 mm 485x763x237 mm 570x565x234 mm
Possible scanhead HALscan 16.20 1064 nm1) HALscan 20.20 1064 nm1) HALscan 30.20 1064 nm1)
Connection with E1803D

1)May require watercooling and special mirrors for extended power range



The D-series CO2 lasers are easy to connect, can be used with 0..200% duty cycle and allow cooling with air or water optionally. In BeamConstruct only CO2 laser mode needs to be enabled and the duty cycle has to be set to 100%.

Model DaVi D30i DaVi D30 DaVi D55i DaVi D55
Output Power 17 W+ 30 W 35 W+ 55 W
Wavelength 9300 nm 10600 nm 9300 nm 10600 nm
Frequency range 0..25 kHz
Output power variances <1,5 % <5 % <5 %
Beam size 18 ±0,2 mm
Beam quality M2<1,2
Polarisation >100 to 1 fixed linear
Pulsewidth 0,05..50 msec
Output power range 10..100 %
Laser cable length 5 or 10 m
Required power supply 48 V, 575 W 48 V, 950 W
Cooling Air or water
Dimensions 357x92,5x142 mm 537x92,5x154 mm
Possible scanhead HALscan 10.20 10600 nm
Connection with E1701D
Connection with E1803D


Several other types of laser sources with other power values, wavelengths and parameters are available on request.
